HVAC Installation Costs in Pennsylvania: AC, Furnace & Heat Pump Prices
A new HVAC system is a $5,000-$15,000 investment. Here's exactly what each system type costs—and how to choose the right one for your home.
Quick Reference: System Costs (Installed)
Understanding HVAC Costs
HVAC pricing depends on three main factors:
- Equipment cost: 40-50% of total (unit itself)
- Installation labor: 30-40% of total
- Materials & permits: 10-20% of total
A "cheap" system with poor installation will cost more over time than a quality system installed correctly. Focus on total value, not just upfront price.

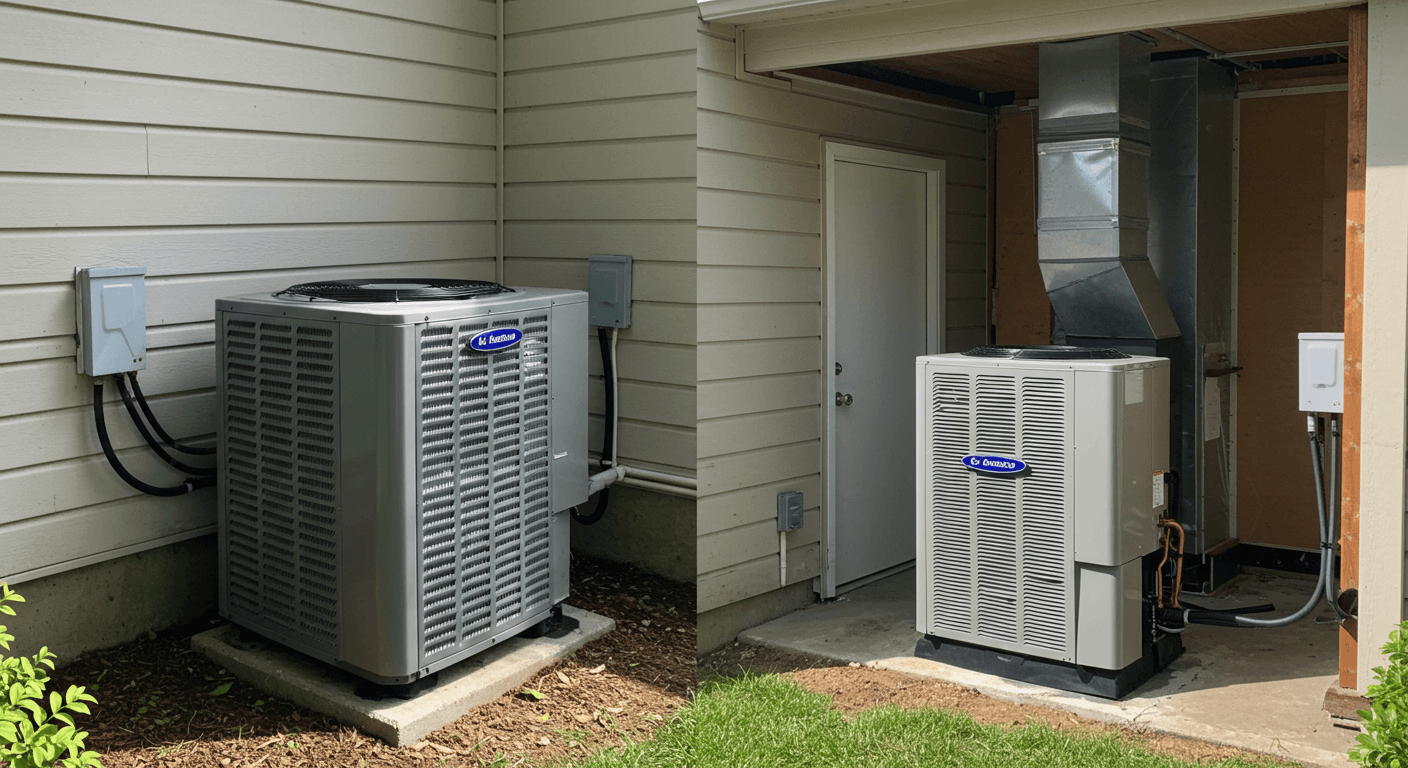

Central Air Conditioning Costs
Central AC prices vary primarily by efficiency (SEER rating) and size (tons):
| SEER Rating | Efficiency | Cost (3-ton unit) | Annual Savings |
|---|---|---|---|
| 14-15 SEER | Standard | $3,500-$4,500 | Baseline |
| 16-17 SEER | High | $4,500-$6,000 | $100-$200/yr |
| 18-21 SEER | Premium | $5,500-$8,000 | $200-$350/yr |
Sizing Your AC
AC size is measured in "tons" (1 ton = 12,000 BTU/hr). Rule of thumb for Pennsylvania homes:
| Home Size | AC Size | Cost Range |
|---|---|---|
| 1,000-1,500 sq ft | 2-2.5 ton | $3,000-$5,000 |
| 1,500-2,000 sq ft | 2.5-3 ton | $3,500-$6,000 |
| 2,000-2,500 sq ft | 3-3.5 ton | $4,000-$7,000 |
| 2,500-3,000 sq ft | 3.5-4 ton | $4,500-$8,000 |
| 3,000+ sq ft | 4-5 ton | $5,500-$10,000 |
Important: Bigger isn't better. An oversized AC short-cycles (turns on/off frequently), doesn't dehumidify properly, and wears out faster. Get a proper Manual J load calculation, not just a rule-of-thumb estimate.
Furnace Costs
Gas furnaces are the most common heating system in Pennsylvania. Prices depend on efficiency rating (AFUE):
| AFUE Rating | Type | Cost Installed | Notes |
|---|---|---|---|
| 80% | Standard | $2,500-$4,000 | Single-stage, basic |
| 92-95% | High Efficiency | $3,500-$5,000 | Two-stage common |
| 96-98% | Premium | $4,500-$6,500 | Modulating, quietest |
Furnace Efficiency: Worth the Upgrade?
In Pennsylvania's climate (6,000+ heating degree days), high-efficiency furnaces typically pay for themselves:
Example: $1,500 annual heating bill with 80% furnace
Upgrade to 95% furnace: Save ~$280/year
Extra upfront cost: ~$1,500
Payback period: ~5.4 years

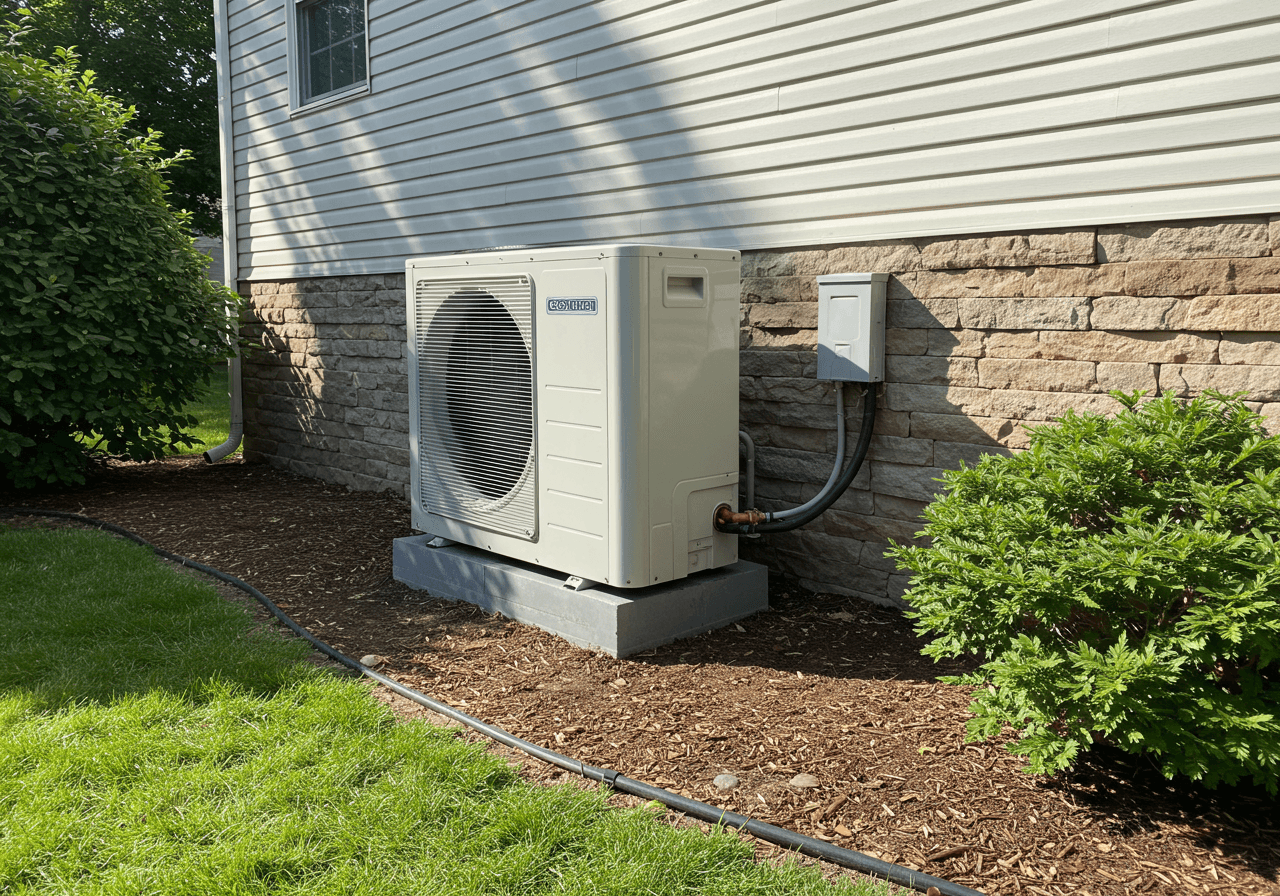

Heat Pump Costs
Heat pumps provide both heating and cooling. They're increasingly popular in Pennsylvania thanks to improved cold-weather performance:
| Type | Cost Installed | Best For |
|---|---|---|
| Standard heat pump | $4,000-$7,000 | Mild climates, with backup |
| Cold climate heat pump | $6,000-$12,000 | PA winters, primary heating |
| Dual fuel (heat pump + gas) | $8,000-$15,000 | Maximum efficiency |
| Geothermal | $18,000-$35,000 | Lowest operating cost |
Heat Pumps in Pennsylvania: What to Know
- Standard heat pumps lose efficiency below 35°F. Need backup heat (electric strips or gas furnace).
- Cold climate models (Mitsubishi Hyper-Heat, Carrier Greenspeed) work efficiently down to 0°F or below.
- Operating costs are typically 30-50% lower than gas furnace + AC, depending on electric rates.
- Federal tax credits of up to $2,000 available for qualifying heat pumps through 2032.
Mini-Split System Costs
Mini-splits (ductless systems) are ideal for additions, older homes without ducts, or zone control:
| Configuration | Cost Installed | Coverage |
|---|---|---|
| Single zone | $2,000-$5,000 | 1 room (300-700 sq ft) |
| 2-zone | $4,000-$8,000 | 2 rooms |
| 3-zone | $6,000-$12,000 | 3 rooms |
| 4-5 zone (whole home) | $10,000-$20,000 | Full house |
Additional Cost Factors
What Can Add to Your Quote
| Factor | Added Cost | When Required |
|---|---|---|
| Ductwork modification | $500-$2,000 | Upsizing system, old ducts |
| New ductwork | $2,000-$6,000 | Adding AC to old home |
| Electrical upgrade | $500-$3,000 | Heat pump, larger system |
| New thermostat | $150-$400 | Smart/programmable upgrade |
| Permit fees | $75-$200 | Required in most PA townships |
| Refrigerant line set | $200-$800 | New AC location |
Location Cost Differences
HVAC installation costs vary across southeastern Pennsylvania:
| Area | Cost Adjustment | Notes |
|---|---|---|
| Wayne, Malvern, Paoli | +15-25% | Larger homes, premium market |
| West Chester | +10-15% | Mixed housing stock |
| King of Prussia | Baseline | Competitive market |
| Downingtown, Phoenixville | -5-10% | More contractor options |
Choosing the Right System
Choose Gas Furnace + AC If:
- • You have natural gas service
- • Lowest upfront cost is priority
- • Existing ductwork in good condition
- • Gas rates are low in your area
Choose Heat Pump If:
- • You want lower operating costs
- • No gas service available
- • Environmentally conscious
- • Qualify for tax credits/rebates
Choose Mini-Split If:
- • No existing ductwork
- • Adding to specific rooms
- • Want zone control
- • Home addition or conversion
Choose Dual Fuel If:
- • Want maximum efficiency
- • Have natural gas service
- • Can invest in premium system
- • Very cold climate area
Red Flags When Getting HVAC Quotes
- No load calculation: Proper sizing requires a Manual J calculation, not just square footage
- Biggest is best: Oversized systems short-cycle and waste energy
- Today only pricing: Legitimate contractors don't use pressure tactics
- No permit included: HVAC work requires permits in PA
- Verbal quote only: Get itemized written estimates
- Extremely low price: May indicate unlicensed work or cheap equipment
